今天讲一讲之前在做支付系统时利用rabbitmq实现数据总线，来进行用户账户资金更新操作。我们知道在支付系统中最最重要的操作就是操作账户资金，比如用户进行充值，提现，或者系统进行对账，返现，返利等等，这些操作是不允许有一分一毫的误差的。在高并发的支付系统中，某一瞬间可能同时有很多线程对同一账户进行操作，有同学说这种情况可以对资金账户加线程锁，乐观锁或悲观锁等进行资源同步保护，但是在高并发的互联网系统中加锁并不是最优的解决方案，加锁意味着性能的降低(或多或少)，下面介绍如何利用rabbitmq实现数据总线来进行资金账户操作。

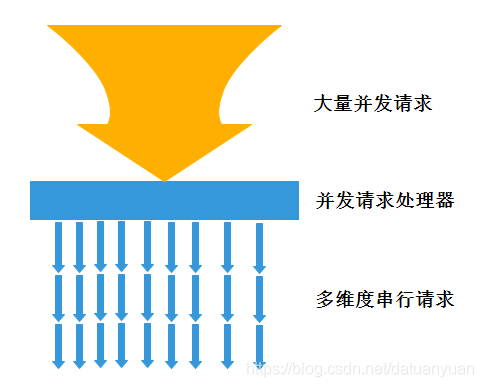

我们核心的目的是利用rabbitmq消息队列的串行特性，将前端涌入的并发请求转换成多维度的串行请求（这也是处理高并发请求的根本目的），如下图：
我们通过rabbitmq消息队列的串行特性，以用户为维度即一个用户使用一个线程进行账户操作，实现多管道串行运行的模型。

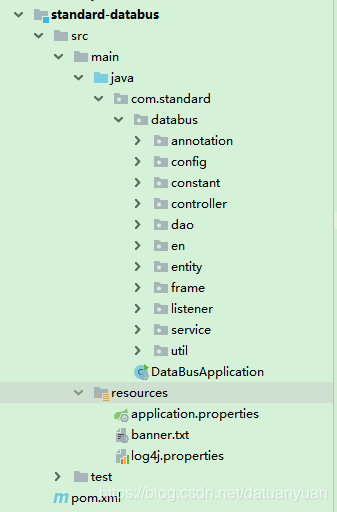

项目结构图如下：
package com.standard.databus.config;
import com.google.common.collect.Lists;
import com.standard.commonutil.util.AnnotationScanHelper;
import com.standard.databus.annotation.StandardRabbitHandler;
import com.standard.databus.annotation.StandardRabbitListener;
import com.standard.databus.constant.RabbitConstant;
import com.standard.databus.frame.BaseMessageListener;
import org.apache.commons.lang3.ArrayUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.core.*;
import org.springframework.amqp.rabbit.config.SimpleRabbitListenerContainerFactory;
import org.springframework.amqp.rabbit.connection.CachingConnectionFactory;
import org.springframework.amqp.rabbit.connection.ConnectionFactory;
import org.springframework.amqp.rabbit.connection.CorrelationData;
import org.springframework.amqp.rabbit.core.RabbitAdmin;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.amqp.rabbit.listener.SimpleMessageListenerContainer;
import org.springframework.amqp.rabbit.listener.adapter.MessageListenerAdapter;
import org.springframework.amqp.support.converter.Jackson2JsonMessageConverter;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.autoconfigure.condition.ConditionalOnClass;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.util.CollectionUtils;
import java.lang.reflect.Method;
import java.util.Arrays;
import java.util.List;
/**
* rabbit配置中心
*
* @author weiyuan
* @version 1.0
*/
@Configuration
public class RabbitConfig {
private final Logger logger = LoggerFactory.getLogger(RabbitConfig.class);
@Value("${rabbitmq.host}")
private String host;
@Value("${rabbitmq.port}")
private Integer port;
@Value("${rabbitmq.username}")
private String username;
@Value("${rabbitmq.password}")
private String password;
@Value("${rabbitmq.connectionCacheSize}")
private Integer connectionCacheSize;
@Value("${rabbitmq.connectionLimit}")
private Integer connectionLimit;
@Value("${rabbitmq.channelCacheSize}")
private Integer channelCacheSize;
@Value("${rabbitmq.connectionTimeout}")
private Integer connectionTimeout;
@Value("${rabbitmq.channelCheckoutTimeout}")
private Long channelCheckoutTimeout;
@Value("${rabbitmq.messageAutoAck}")
private Boolean messageAutoAck;
@Value("${rabbitmq.virtualHost}")
private String virtualHost;
@Autowired
private BaseMessageListener baseMessageListener;
/**
* 配置连接
*
* @return
*/
@Bean
public ConnectionFactory connectionFactory() {
CachingConnectionFactory connectionFactory = new CachingConnectionFactory();
connectionFactory.setHost(host);
connectionFactory.setPort(port);
connectionFactory.setVirtualHost(virtualHost);
connectionFactory.setUsername(username);
connectionFactory.setPassword(password);
connectionFactory.setCacheMode(CachingConnectionFactory.CacheMode.CONNECTION);
connectionFactory.setConnectionCacheSize(connectionCacheSize);
connectionFactory.setConnectionLimit(connectionLimit);
connectionFactory.setChannelCacheSize(channelCacheSize);
connectionFactory.setConnectionTimeout(connectionTimeout);
connectionFactory.setChannelCheckoutTimeout(channelCheckoutTimeout);
//开启confirmCallback 确认模式
connectionFactory.setPublisherConfirmType(CachingConnectionFactory.ConfirmType.CORRELATED);
//开启returnCallback模式
connectionFactory.setPublisherReturns(true);
return connectionFactory;
}
/**
* 配置消息监听容器
*
* @return
*/
@Bean
@ConditionalOnClass
public SimpleRabbitListenerContainerFactory rabbitListenerContainerFactory() {
SimpleRabbitListenerContainerFactory factory = new SimpleRabbitListenerContainerFactory();
factory.setConnectionFactory(connectionFactory());
factory.setAcknowledgeMode(messageAutoAck ? AcknowledgeMode.AUTO : AcknowledgeMode.MANUAL);
return factory;
}
/**
* 配置管理类
*
* @return
*/
@Bean
public RabbitAdmin rabbitAdmin(ConnectionFactory connectionFactory) {
return new RabbitAdmin(connectionFactory);
}
/**
* direct类型交换器声明
*
* @param rabbitAdmin
* @return
*/
@Bean
DirectExchange directExchange(RabbitAdmin rabbitAdmin) {
DirectExchange directExchange = new DirectExchange(RabbitConstant.DIRECT_EXCHANGE_NAME, true, false);
rabbitAdmin.declareExchange(directExchange);
return directExchange;
}
/**
* topic类型交换器声明
*
* @param rabbitAdmin
* @return
*/
@Bean
TopicExchange topicExchange(RabbitAdmin rabbitAdmin) {
TopicExchange topicExchange = new TopicExchange(RabbitConstant.TOPIC_EXCHANGE_NAME, true, false);
rabbitAdmin.declareExchange(topicExchange);
return topicExchange;
}
/**
* fanout类型交换器声明
*
* @param rabbitAdmin
* @return
*/
@Bean
FanoutExchange fanoutExchange(RabbitAdmin rabbitAdmin) {
FanoutExchange fanoutExchange = new FanoutExchange(RabbitConstant.FANOUT_EXCHANGE_NAME, true, false);
rabbitAdmin.declareExchange(fanoutExchange);
return fanoutExchange;
}
/**
* 配置RabbitTemplate
*/
@Bean
public RabbitTemplate rabbitTemplate() {
RabbitTemplate rabbitTemplate = new RabbitTemplate(connectionFactory());
//使用jackson消息转换器
rabbitTemplate.setMessageConverter(new Jackson2JsonMessageConverter());
rabbitTemplate.setEncoding("UTF-8");
//开启强制委托模式
rabbitTemplate.setMandatory(true);
//使用单独的发送连接，避免生产者由于各种原因阻塞而导致消费者同样阻塞
rabbitTemplate.setUsePublisherConnection(true);
rabbitTemplate.setReturnCallback(new RabbitTemplate.ReturnCallback() {
@Override
public void returnedMessage(Message message, int replyCode, String replyText, String exchange, String routingKey) {
String correlationId = message.getMessageProperties().getCorrelationId();
logger.info("MQ消息ID[" + correlationId + "]投递到队列失败,应答码[" + replyCode + "],原因[" + replyText + "],交换机[" + exchange + "],路由键[" + routingKey + "]");
}
});
rabbitTemplate.setConfirmCallback(new RabbitTemplate.ConfirmCallback() {
@Override
public void confirm(CorrelationData correlationData, boolean ack, String cause) {
if (!ack) {
logger.info("MQ消息ID[" + correlationData.getId() + "]发送到路由器失败,原因: [" + cause.toString() + "]");
} else {
logger.info("MQ消息ID[" + correlationData.getId() + "] 发送到路由器成功");
}
}
});
return rabbitTemplate;
}
/**
* 配置消息监听
*
* @return
*/
@Bean
public SimpleMessageListenerContainer container(SimpleRabbitListenerContainerFactory rabbitListenerContainerFactory, RabbitAdmin rabbitAdmin, DirectExchange directExchange) {
List<String> queueList = Lists.newArrayList();
SimpleMessageListenerContainer container = rabbitListenerContainerFactory.createListenerContainer();
container.setConcurrentConsumers(1);//设置消息串行分发
container.setMaxConcurrentConsumers(1); //设置消息串行分发
container.setPrefetchCount(3);
container.setMessageListener(new MessageListenerAdapter(baseMessageListener));
List<Class<?>> findAnnotationByType = AnnotationScanHelper.findAnnotationByType(StandardRabbitHandler.class);
if (!CollectionUtils.isEmpty(findAnnotationByType)) {
for (Class<?> clazz : findAnnotationByType) {
Method[] declaredMethods = clazz.getDeclaredMethods();
if (ArrayUtils.isNotEmpty(declaredMethods)) {
for (Method method : declaredMethods) {
StandardRabbitListener deamRabbitListenerAnnotation = method.getAnnotation(StandardRabbitListener.class);
if (deamRabbitListenerAnnotation != null) {
if (ArrayUtils.isNotEmpty(deamRabbitListenerAnnotation.routingKeys())) {
String[] routingKeys = deamRabbitListenerAnnotation.routingKeys();
queueList.addAll(Arrays.asList(routingKeys));
container.addQueueNames(routingKeys);
}
}
}
}
}
}
if (!CollectionUtils.isEmpty(queueList)) {
for (String queueName : queueList) {
Queue queue = new Queue(queueName, true, false, false);
rabbitAdmin.declareQueue(queue);
Binding binding = BindingBuilder.bind(queue).to(directExchange).with(queueName);
rabbitAdmin.declareBinding(binding);
}
}
return container;
}
}

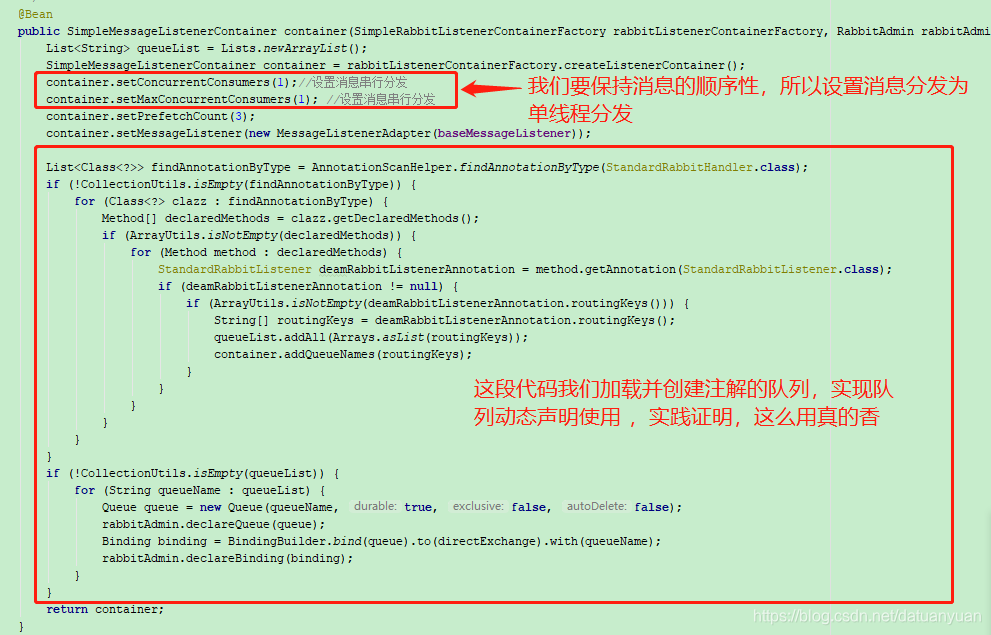

rabbitmq的连接池配置启动类，主要注意点如下：
package com.standard.databus.frame;
import com.standard.commonutil.util.UUIDGenerator;
import com.standard.databus.constant.RabbitConstant;
import org.apache.commons.lang3.ArrayUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.core.*;
import org.springframework.amqp.rabbit.connection.CorrelationData;
import org.springframework.amqp.rabbit.core.RabbitAdmin;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.amqp.rabbit.listener.SimpleMessageListenerContainer;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;
import java.util.UUID;
/**
* MQ消息发送工具类
*
* @author weiyuan
* @version 1.0
*/
@Component
public class MsgSender {
private final Logger logger = LoggerFactory.getLogger(MsgSender.class);
/**
* 消息是否持久化，2持久化
*/
@Value("${rabbitmq.messageDeliveryMode}")
private Integer messageDeliveryMode;
@Autowired
RabbitAdmin rabbitAdmin;
@Autowired
private RabbitTemplate rabbitTemplate;
@Autowired
private SimpleMessageListenerContainer simpleMessageListenerContainer;
@Autowired
private DirectExchange directExchange;
@Autowired
private TopicExchange topicExchange;
/**
* 发送direct模式消息
*
* @param msg
* @param routingKey
*/
public void sendDirectMsg(Object msg, String routingKey) {
//判断simpleMessageListenerContainer 监听的队列是否存在
if (!ArrayUtils.contains(simpleMessageListenerContainer.getQueueNames(), routingKey)) {
Queue queue = new Queue(routingKey, true, false, false);
rabbitAdmin.declareQueue(queue);
Binding binding = BindingBuilder.bind(queue).to(directExchange).with(routingKey);
rabbitAdmin.declareBinding(binding);
simpleMessageListenerContainer.addQueueNames(routingKey);
}
//生成消息ID
String msgId = UUIDGenerator.getUUID();
rabbitTemplate.convertAndSend(RabbitConstant.DIRECT_EXCHANGE_NAME, routingKey, msg, message -> {
message.getMessageProperties().setDeliveryMode(messageDeliveryMode == 2 ? MessageDeliveryMode.PERSISTENT : MessageDeliveryMode.NON_PERSISTENT);
return message;
}, new CorrelationData(msgId));
logger.info("BEGIN-MQ消息ID[" + msgId + "]已发送, 发送消息内容：" + msg.toString());
}
/**
* TODO 暂不实现
* 发送topic模式消息
*
* @param msg
* @param routingKey
*/
public void sendTopicMsg(Object msg, String routingKey) {
if (!ArrayUtils.contains(simpleMessageListenerContainer.getQueueNames(), routingKey)) {
Queue queue = new Queue(routingKey, true, false, false);
rabbitAdmin.declareQueue(queue);
Binding binding = BindingBuilder.bind(queue).to(topicExchange).with(routingKey);
rabbitAdmin.declareBinding(binding);
simpleMessageListenerContainer.addQueueNames(routingKey);
}
//生成消息ID
String msgId = UUID.randomUUID().toString();
rabbitTemplate.convertAndSend(RabbitConstant.TOPIC_EXCHANGE_NAME, routingKey, msg, message -> {
message.getMessageProperties().setDeliveryMode(messageDeliveryMode == 2 ? MessageDeliveryMode.PERSISTENT : MessageDeliveryMode.NON_PERSISTENT);
return message;
}, new CorrelationData(msgId));
logger.info("BEGIN-MQ消息ID[" + msgId + "]已发送");
}
/**
* TODO 暂不实现
* 发送fanout模式消息
*
* @param msg
*/
public void sendFanoutMsg(String msg) {
}
}
Rabbitmq消息发送工具类，也是采用动态声明队列，绑定，添加到监听容器。
package com.standard.databus.annotation;
import org.springframework.stereotype.Component;
import java.lang.annotation.*;
/**
* 注解MQ消息监听类
*
* @author weiyuan
* @version 1.0
*/
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@Component
public @interface StandardRabbitHandler {
String name() default "";
}
注解接收消息，处理业务逻辑的类
package com.standard.databus.annotation;
import com.standard.databus.en.ExchangeType;
import java.lang.annotation.*;
/**
* 注解mq消息处理方法
*
* @author weiyuan
* @version 1.0
*/
@Target(ElementType.METHOD)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
public @interface StandardRabbitListener {
String[] routingKeys() default {};//为空代表处理所有
ExchangeType exchangeType() default ExchangeType.DIRECT;//交换器类型
}
注解接收消息处理业务逻辑的具体方法，参数为队列名称
package com.standard.databus.frame;
import com.google.common.collect.Maps;
import com.rabbitmq.client.Channel;
import com.standard.databus.entity.MessageInfo;
import com.standard.databus.entity.QueueInfo;
import com.standard.databus.service.MessageInfoService;
import com.standard.databus.service.QueueInfoService;
import com.standard.databus.service.ServiceFactory;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.listener.api.ChannelAwareMessageListener;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import java.util.Map;
import java.util.concurrent.LinkedBlockingQueue;
import java.util.concurrent.ThreadPoolExecutor;
import java.util.concurrent.TimeUnit;
/**
* 消息消费基类
*
* @author weiyuan
* @version 1.0
*/
@Component
public class BaseMessageListener implements ChannelAwareMessageListener {
private final Logger logger = LoggerFactory.getLogger(this.getClass());
@Autowired
ConsumerHandler consumerHandler;
@Autowired
private ServiceFactory serviceFactory;
private Map<String, ThreadPoolExecutor> threadPoolMap = Maps.newHashMap();
@Override
public void onMessage(Message message, Channel channel) {
try {
channel.basicAck(message.getMessageProperties().getDeliveryTag(), false);//确认收到消息
String msgId = message.getMessageProperties().getHeaders().get("spring_returned_message_correlation").toString();
String queueName = message.getMessageProperties().getConsumerQueue();
logger.info("MQ-开始消费[" + queueName + "]队列的消息[IdGenerator=" + msgId + "]，当前线程ID[" + Thread.currentThread().getId() + "]");
MessageInfo messageInfo = serviceFactory.getMessageInfoService().findInfoById(msgId);
if (messageInfo != null) {
if (messageInfo.getStatus() == -1) {// 消息存在，并且状态是失败，代表消息处理失败重发处理
serviceFactory.getMessageInfoService().updateInfoToHandling(messageInfo.getMsgId()); // 处理失败则重新处理
} else {// 状态不是失败，则立即返回
logger.info("消息[id=" + msgId + "]已经被消费");
return;
}
} else {
serviceFactory.getMessageInfoService().createInfo(msgId, message, queueName);
}
QueueInfo queueInfo = serviceFactory.getQueueInfoService().findByQueueName(queueName);
if (queueInfo == null) {
serviceFactory.getQueueInfoService().createInfo(queueName);
}

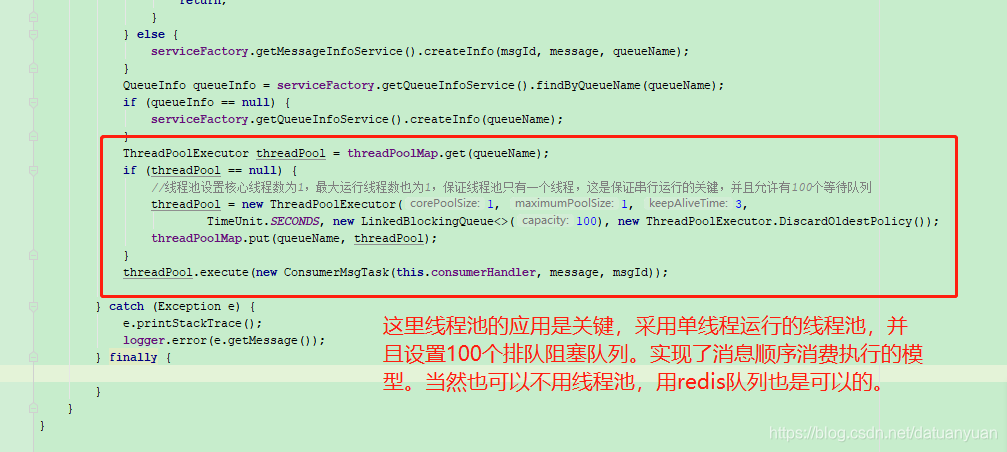

ThreadPoolExecutor threadPool = threadPoolMap.get(queueName);
if (threadPool == null) {
//线程池设置核心线程数为1，最大运行线程数也为1，保证线程池只有一个线程，这是保证串行运行的关键，并且允许有100个等待队列
threadPool = new ThreadPoolExecutor(1, 1, 3,
TimeUnit.SECONDS, new LinkedBlockingQueue<>(100), new ThreadPoolExecutor.DiscardOldestPolicy());
threadPoolMap.put(queueName, threadPool);
}
threadPool.execute(new ConsumerMsgTask(this.consumerHandler, message, msgId));
} catch (Exception e) {
e.printStackTrace();
logger.error(e.getMessage());
} finally {
}
}
}
消费消息的基类，进行消息的确认，分发，以及数据模型多队列串行的构建，要点如下：
package com.standard.databus.controller;
import com.standard.databus.util.RabbitUtil;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;
/**
* 测试发送消息
*
* @author weiyuan
* @version 1.0
*/
@RestController
public class TestController {
@Autowired
RabbitUtil rabbitUtil;
@RequestMapping(value = "/test",method = RequestMethod.GET)
public String test() {
for (int i = 0; i < 50; i++) {
rabbitUtil.sendDirectMsg("myqueue-1", "队列myqueue-1，发送消息：hllo wrold" + i);//发送消息
}
for (int i = 0; i < 50; i++) {
rabbitUtil.sendDirectMsg("myqueue-2", "队列myqueue-2 ，发送消息：hllo wrold" + i);//发送消息
}
return "";
}
}
测试分别同时向两个队列 myqueue-1, myqueue-2发送100条消息。
package com.standard.databus.listener;
import com.standard.databus.annotation.StandardRabbitHandler;
import com.standard.databus.annotation.StandardRabbitListener;
import org.springframework.amqp.core.Message;
/**
* 测试监听消息
*
* @author weiyuan
* @version 1.0
*/
@StandardRabbitHandler
public class TestListener {
@StandardRabbitListener(routingKeys = "myqueue-1")
public void testListener1(Message message) throws Exception{
String msg = new String(message.getBody());
System.out.println("*********************队列【myqueue-1】，接收到消息： " + msg);
Thread.sleep(99999999999l);
}
@StandardRabbitListener(routingKeys = "myqueue-2")
public void testListener2(Message message) {
String msg = new String(message.getBody());
System.out.println("队列【myqueue-2】接收到消息： " + msg);
}
}
定义两个监听队列方法，分别消费myqueue-1,myqueue-2的消息。其中testListener1方法中，消费了一条消息后就让线程sleep， 测试影不影响myqueue-2队列的消息消费。
好了，启动项目，Run DataBusApplication，
浏览器中访问：http://127.0.0.1:8081/test
观察后台控台输出，发现myqueue-1接收到第一条消息后就停止处理了，而myqueue-2则正常处理，并且是按照消息的发送顺序处理消息，这正是我们想要的效果。
该模型有待优化的一点就是业务逻辑处理失败了，需要消息重发的机制。欢迎大家关注我的公众号，留言讨论。完整源码获取方式：关注以下公众号，回复 “MQ” ，即可获取完整源码。
