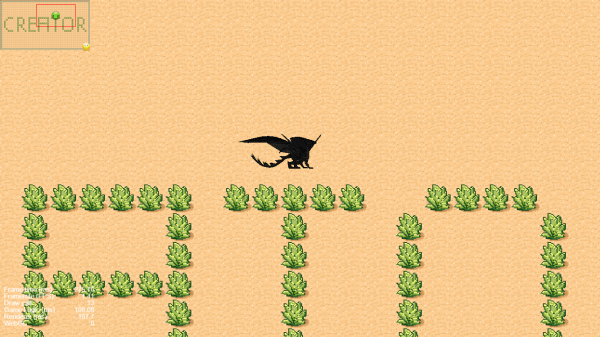

演示
ps:请注意左上角
![](https://imgconvert.csdnimg.cn/aHR0cHM6Ly9tbWJpei5xcGljLmNuL21tYml6X2dpZi81OFJQUUpVVFFmZkhUa0JRam5OZEVqMDJVZ3pBdE9IQnZpY21FVXZMa0MyYkNJbGoxWXJzbWFpYjR5VUpCMzZOdTdFNlFyQ2ljNTVWb0dNaWNuVExPWWhNRFEvNjQw?x-oss-process=image/format,png)
技术摘要
大地图与小地图坐标转换
更新小地图中元素及视口位置
拖动小地图中视口位置/更新Main Camera位置
实现
01
小地图(图片)的宽高比例必须和大地图相等
这样就可以将大地图上的元素照搬到小地图上了

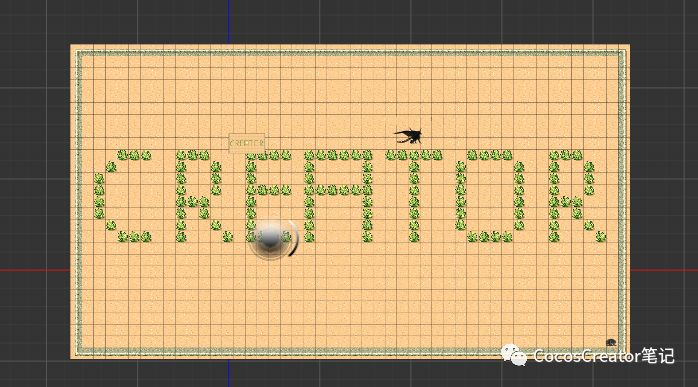

大地图:
![](https://imgconvert.csdnimg.cn/aHR0cHM6Ly9tbWJpei5xcGljLmNuL21tYml6X3BuZy81OFJQUUpVVFFmZkhUa0JRam5OZEVqMDJVZ3pBdE9IQmszOFNweGNHT0ppYThMRUN1NGxpYjhKaGZVWmNGR3R2bDg0azJNblZkUmJIaWJLd01CVVIyaWJ2OVEvNjQw?x-oss-process=image/format,png)

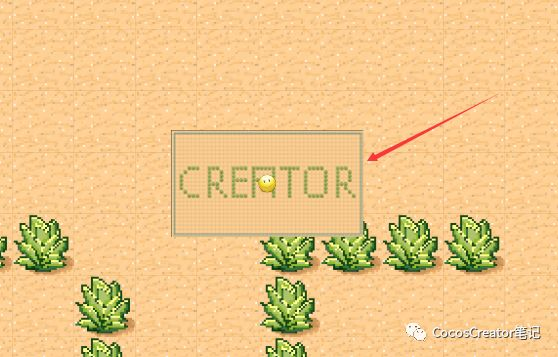

小地图:
![](https://imgconvert.csdnimg.cn/aHR0cHM6Ly9tbWJpei5xcGljLmNuL21tYml6X3BuZy81OFJQUUpVVFFmZkhUa0JRam5OZEVqMDJVZ3pBdE9IQkhza0J4cG5maWJLMTJialZzaWN2NUJob29LaWF2UXdxcmljMVRDSDU4UkdKRWliY3Rhbm54ajZYYzlBLzY0MA?x-oss-process=image/format,png)
场景中小地图里的元素如下:
mini_map:小地图
player:玩家
monster:怪物
rect:当前视口
![](https://imgconvert.csdnimg.cn/aHR0cHM6Ly9tbWJpei5xcGljLmNuL21tYml6X3BuZy81OFJQUUpVVFFmZTQzR2JxMjhTNmdXaG1sZHlLSncwR0lIaERQTkIxZWljMDVYYVZEaWJkWVI1OTByck5SNDhuS0ZpYkpOMk5KaldYeENWMFBlS0xjNms2US82NDA?x-oss-process=image/format,png)

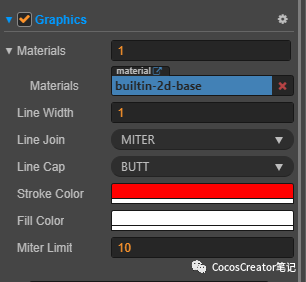

rect添加Graphics组件,画出当前视口矩形
![](https://imgconvert.csdnimg.cn/aHR0cHM6Ly9tbWJpei5xcGljLmNuL21tYml6X3BuZy81OFJQUUpVVFFmZTQzR2JxMjhTNmdXaG1sZHlLSncwRzhBMkVzWHl4Nk5xYkZQSllTWUl5cDFuVVFmUTdDQ3JrRW1RSEYxN3NrTGF4bUJvdnNZU2d4QS82NDA?x-oss-process=image/format,png)
02
坐标转换:
mapToMini(point: cc.Vec2) {
let x = point.x / this.tileMap.node.width * this.miniMap.width;
let y = point.y / this.tileMap.node.height * this.miniMap.height;
return cc.v2(x, y);
}
miniToMap(point: cc.Vec2) {
let x = point.x / this.miniMap.width * this.tileMap.node.width;
let y = point.y / this.miniMap.height * this.tileMap.node.height;
return cc.v2(x, y);
}
小地图注册触摸事件:
this.miniMap.on("touchstart", this.onTouchStart, this);
this.miniMap.on("touchmove", this.onTouchMove, this);
this.miniMap.on("touchend", this.onTouchEnd, this);
this.miniMap.on("touchcancel", this.onTouchEnd, this);
on/off记得要成对出现:
onDestroy() {
this.miniMap.off("touchstart", this.onTouchStart, this);
this.miniMap.off("touchmove", this.onTouchMove, this);
this.miniMap.off("touchend", this.onTouchEnd, this);
this.miniMap.off("touchcancel", this.onTouchEnd, this);
}
在触摸开始和滑动的时候更新Main Camera和小地图视口的位置
触摸结束的时候回到玩家当前视角
touchMiniMap(event: cc.Event.EventTouch) {
let touchLocation = this.miniMap.convertToNodeSpaceAR(event.getLocation());
let position = this.miniToMap(touchLocation);
this.updateCameraPosition(position);
}
onTouchStart(event: cc.Event.EventTouch) {
this.touchMiniMap(event);
}
onTouchMove(event: cc.Event.EventTouch) {
this.touchMiniMap(event);
}
onTouchEnd(event: cc.Event.EventTouch) {
this.updateCameraPosition(this.nodePlayer.position);
}
更新Main Camera位置并限制其边界
updateCameraPosition(target: cc.Vec2){
if (target.x > this._cameraMaxX) {
target.x = this._cameraMaxX;
}
if (target.x < -this._cameraMaxX) {
target.x = -this._cameraMaxX;
}
if (target.y > this._cameraMaxY) {
target.y = this._cameraMaxY;
}
if (target.y < -this._cameraMaxY) {
target.y = -this._cameraMaxY;
}
this.mainCamera.node.position = target;
this.updateMiniRect();
}
更新小地图视口位置
updateMiniRect() {
let pointCamera = this.mainCamera.node.position.sub(cc.v2(cc.winSize.width / 2, cc.winSize.height / 2));
pointCamera = this.mapToMini(pointCamera);
this.miniRect.clear();
this.miniRect.rect(pointCamera.x, pointCamera.y, this._miniScreenWidth, this._miniScreenHeight);
this.miniRect.stroke();
}
![](https://imgconvert.csdnimg.cn/aHR0cHM6Ly9tbWJpei5xcGljLmNuL21tYml6X3BuZy83UVJUdmtLMnFDN1dPdnFKenJZeEFOU3NTc1hXUkVaY1g4eHNrNmJsaWI2blNYaENodUYzcmFmQW1Dc0pqWjFzbThUbWFGUE42clhST051NDBpYXFJdkx3LzY0MA?x-oss-process=image/format,png)
